Aluminium lift and slide patio doors create wide openings with large expanses of glazing. They are the perfect choice when you want extensive and panoramic views of your garden or exterior space. The KLS lift and slide patio door system provides end users with an effortless opening action with every operation. It slides smoothly open and can be securely locked to protect any property interior.

KLS patio doors are compatible with domestic and commercial applications. They can even be used as an openable partition between two interior areas. Mechanical cleats and chevrons are used for ease of fabrication and the door’s heavy-duty sliding roller system can support individual door leafs up to 3300mm x 3200mm in height. The system’s maximum weight capacity is 400kg and each section is internally beaded to maximise security.

  • Features
  • Technical information
  • Downloads
  • FAQ
  • Features

    • Robust smooth sliding roller opening system
    • Lift and slide system for advanced security
    • Large expanses of glass for uninterrupted views
    • Space saving horizontal sliding action
    • Available with a range of attractive and durable hardware
    • Mechanical corner joints
    • Available with a selection of glazing thicknesses

    Get in touch

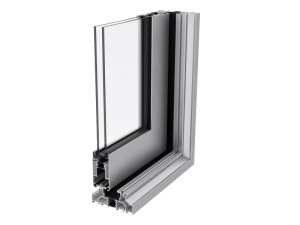

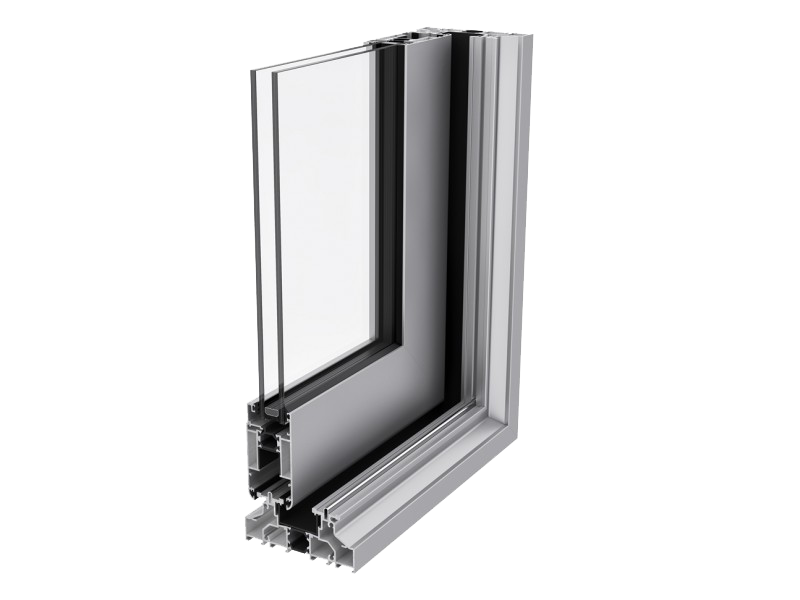

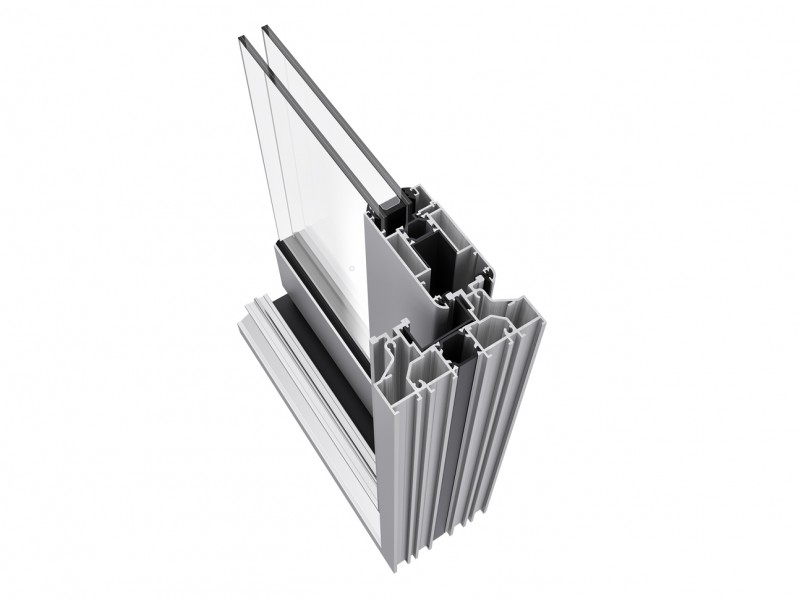

    Sample cut out

    Technical information

    • Maximum door weight: 400kg
    • U-values as low as 1.5W/m²k
    • Maximum door leaf size: 3300mm x 3200mm
    • Available as slide only system, maximum door weight: 220kg
    • Maximum glazing thickness: 39.5mm
    • Air permeability: 600Pa
    • Water tightness: 150Pa
    • Wind load resistance: 800Pa

    Get in touch

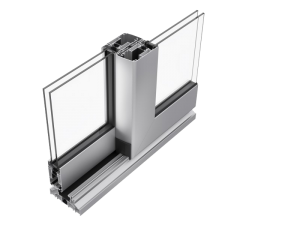

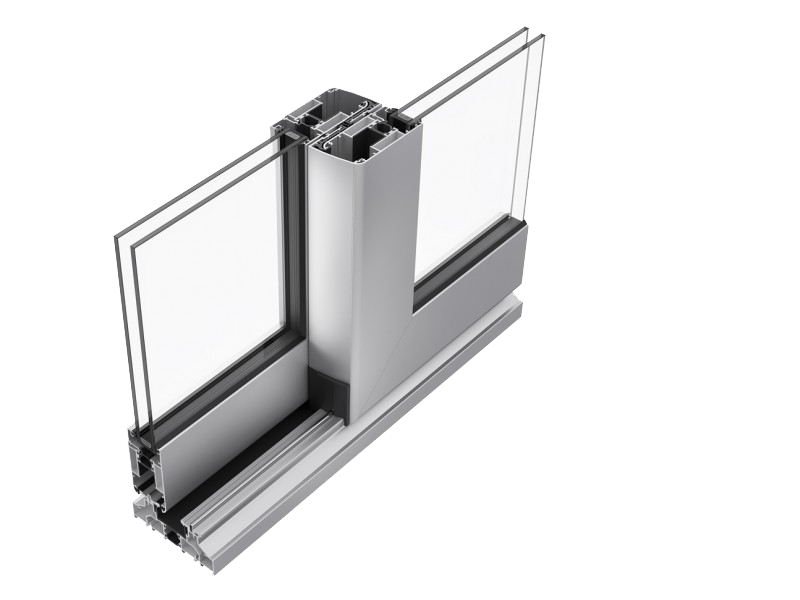

    Sample cut out

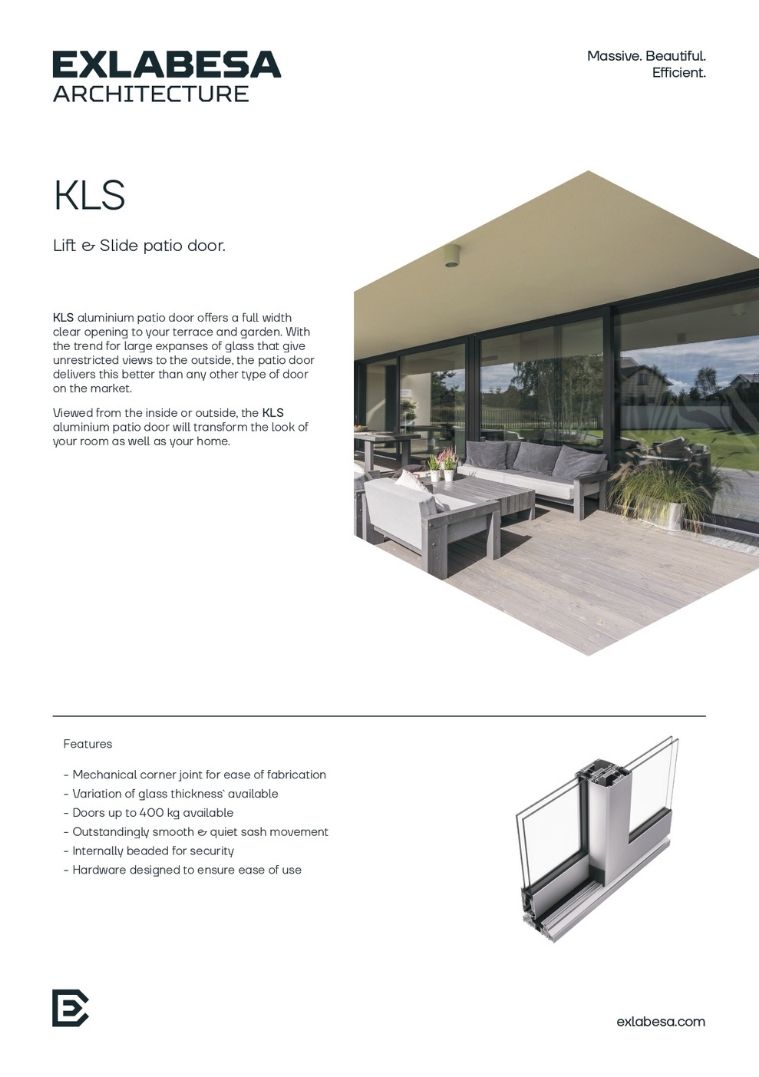

    Downloads

    FAQ

    What is a lift and slide patio door?

    A lift and slide patio door uses mechanical corner joints and a roller opening system. This allows you to open the door and slide the door open or closed with ease. You have to open the handle and the door will glide open. When you close the door it lowers onto its track to seal the entrance.

    Who makes lift and slide patio doors?

    Exlabesa makes lift and slide doors that weigh up to 400kg with leafs of up to 3300mm x 3200mm in height. They use a robust smooth roller system with fantastic weather resistance and security.

    Get in touch

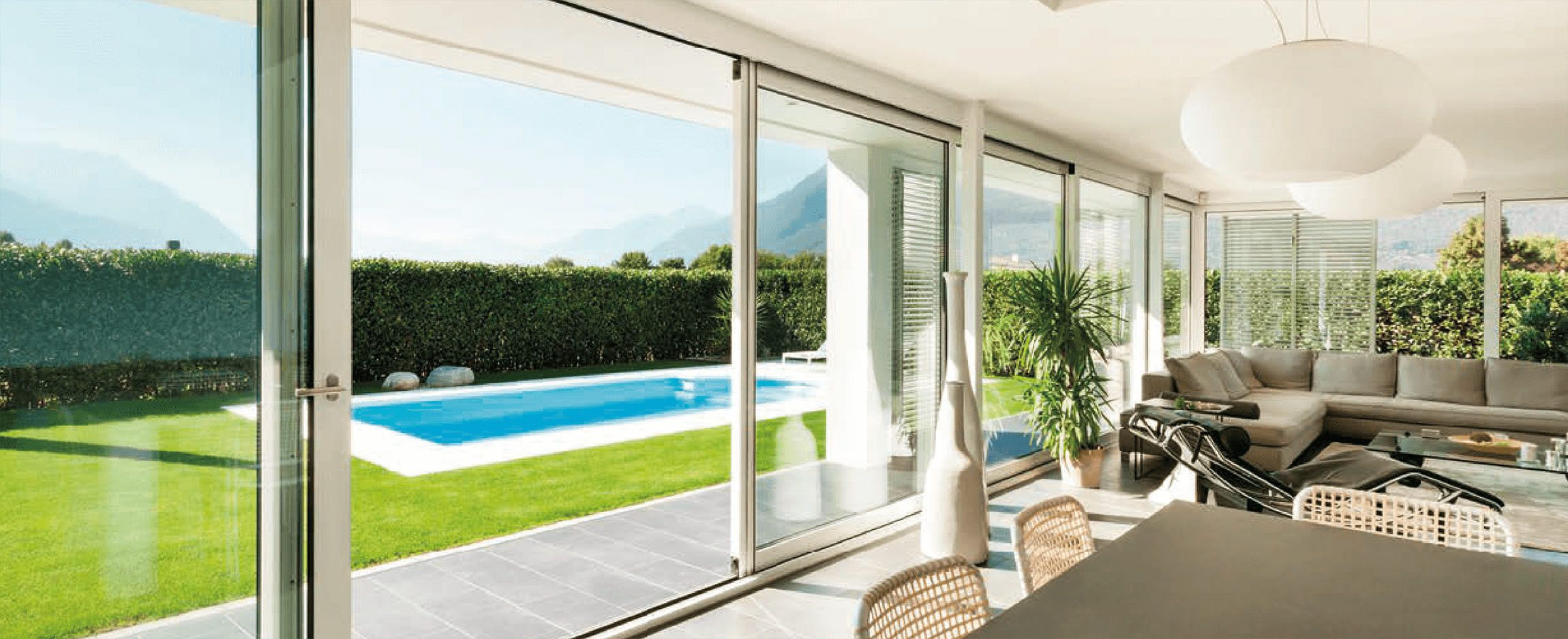

    Sliding doors next to swimming pool
