At exlabesa, we produce a range of thermal shop front systems designed to maximise security and thermal performance. KTS thermal shop fronts utilise innovative thermal break technology to optimise thermal insulation capacity. The door section of the KTS thermal shop front is manufactured using a single section of aluminium to minimise waste. A range of configurations are available, and the KTS thermal shop front system is compatible with other exlabesa aluminium window, door, and curtain walling systems.

KTS thermal shop fronts are designed to be compatible with a selection of industry standard components. In terms of security, flush bolts, locks, cylinders, closers, and panic bars are readily available to match the shop front’s design. With an anti-finger trap door leaf design and a range of threshold options, the KTS thermal shop front system is the perfect choice for a range of light commercial applications.

  • Features
  • Technical information
  • Downloads
  • Features

    • Energy efficient double glazing to maximise thermal performance
    • Cost-effective one section door leaf to reduce waste
    • Innovative thermal breaks
    • Mechanical corner joints for easy assembly
    • Dual colour available
    • T cleat door closers to reduce fabrication time
    • Fully rebated cill to allow for low thresholds

    Get in touch
    Sample cut out

    Technical information

    • Maximum weight: 100kg standard, 120kg heavy duty
    • Maximum leaf size: 1150mm x 2400mm
    • PAS24 security accredited
    • U-values as low as 1.9W/m²k
    • 6.7m sash section
    • 24/32mm polyamide thermal breaks
    • Maximum glazing width: 28.8mm
    • Maximum door glazing thickness: 32.8mm

    Get in touch
    Sample cut out

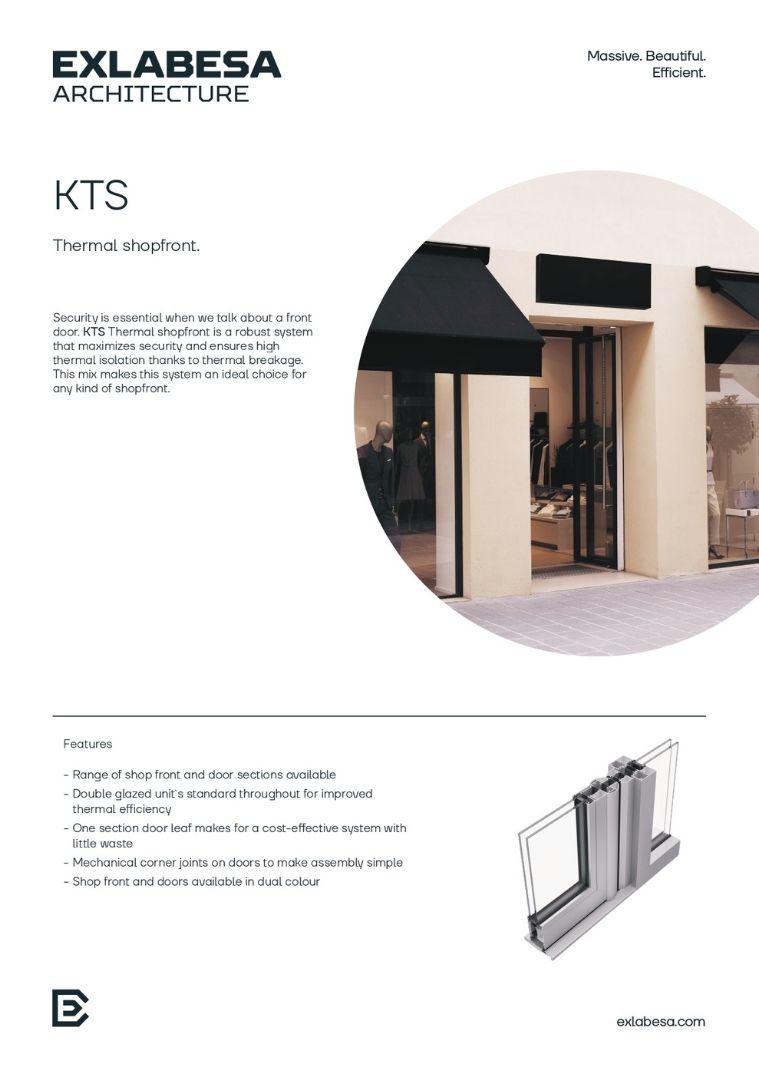

    Downloads
