Casement windows are the essential glazing product for any installer’s product portfolio

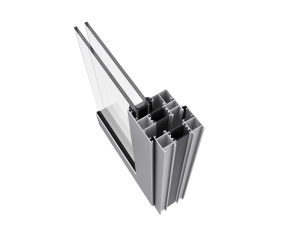

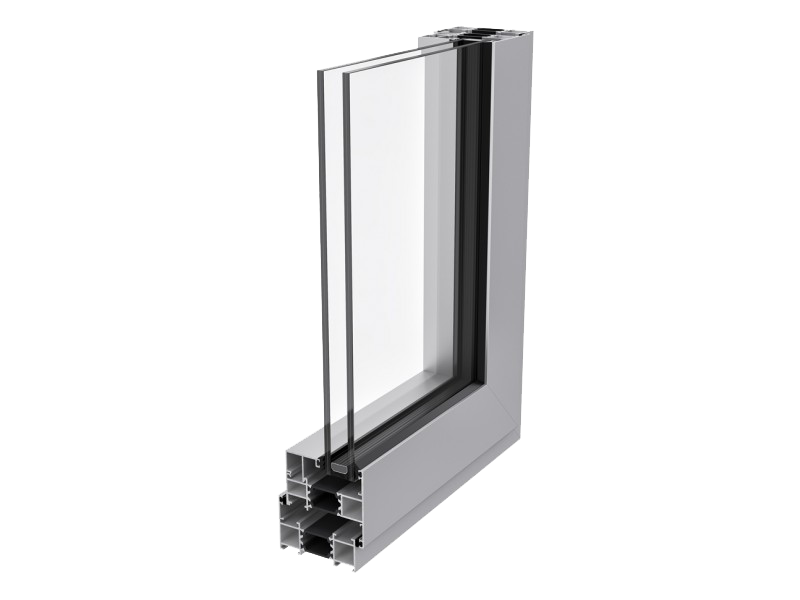

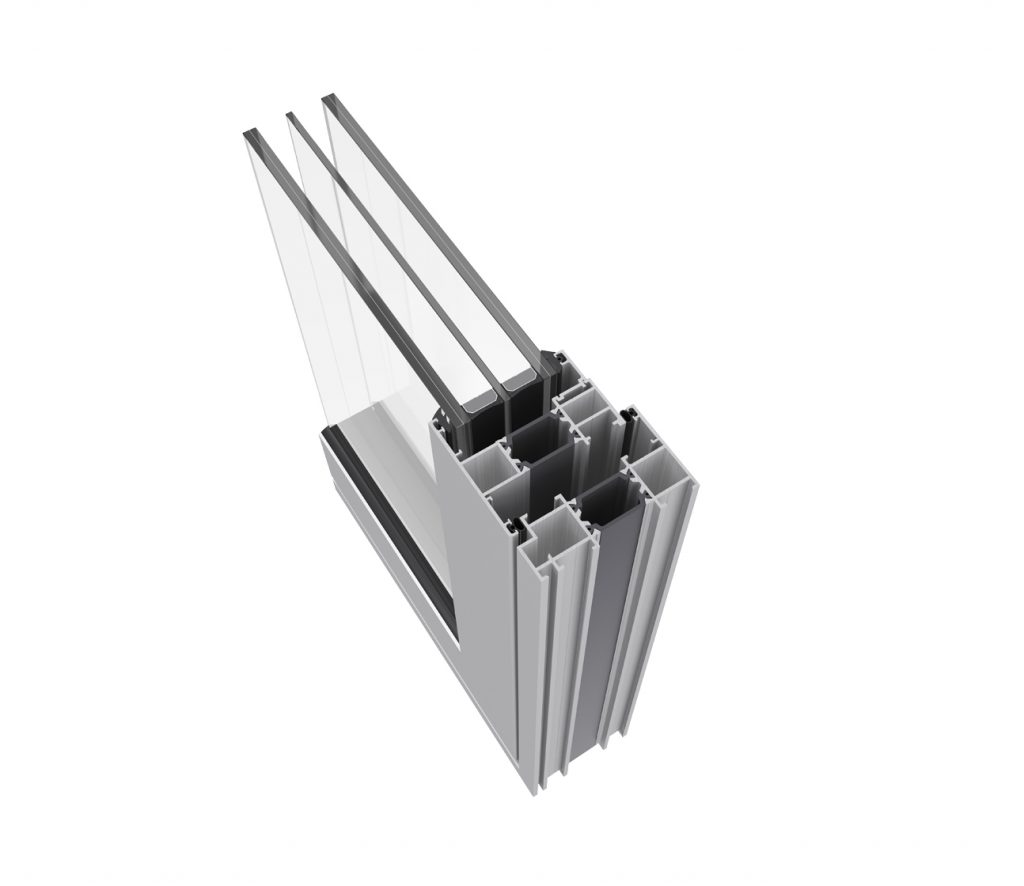

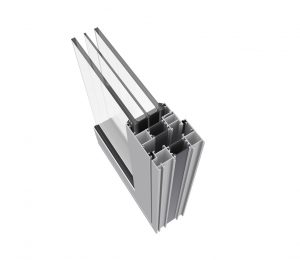

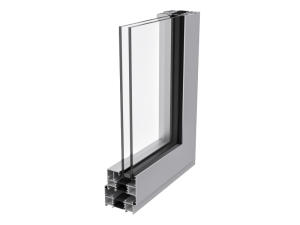

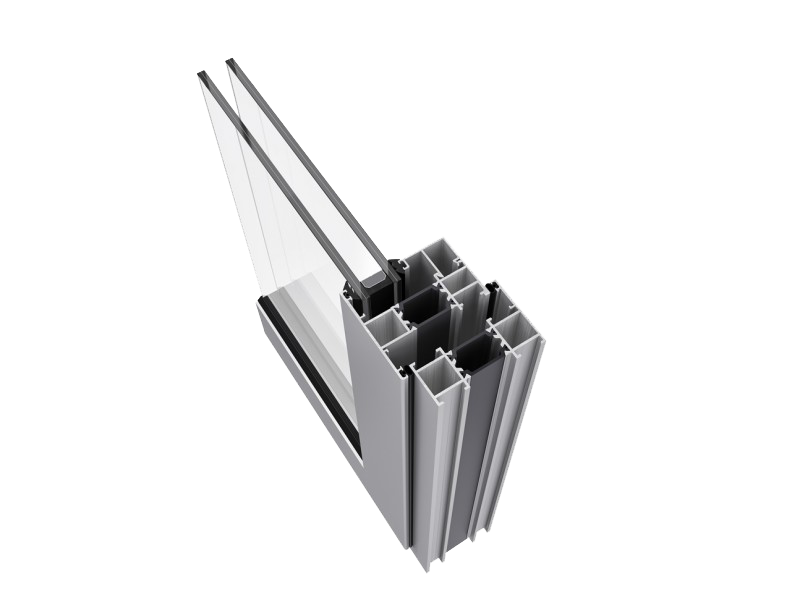

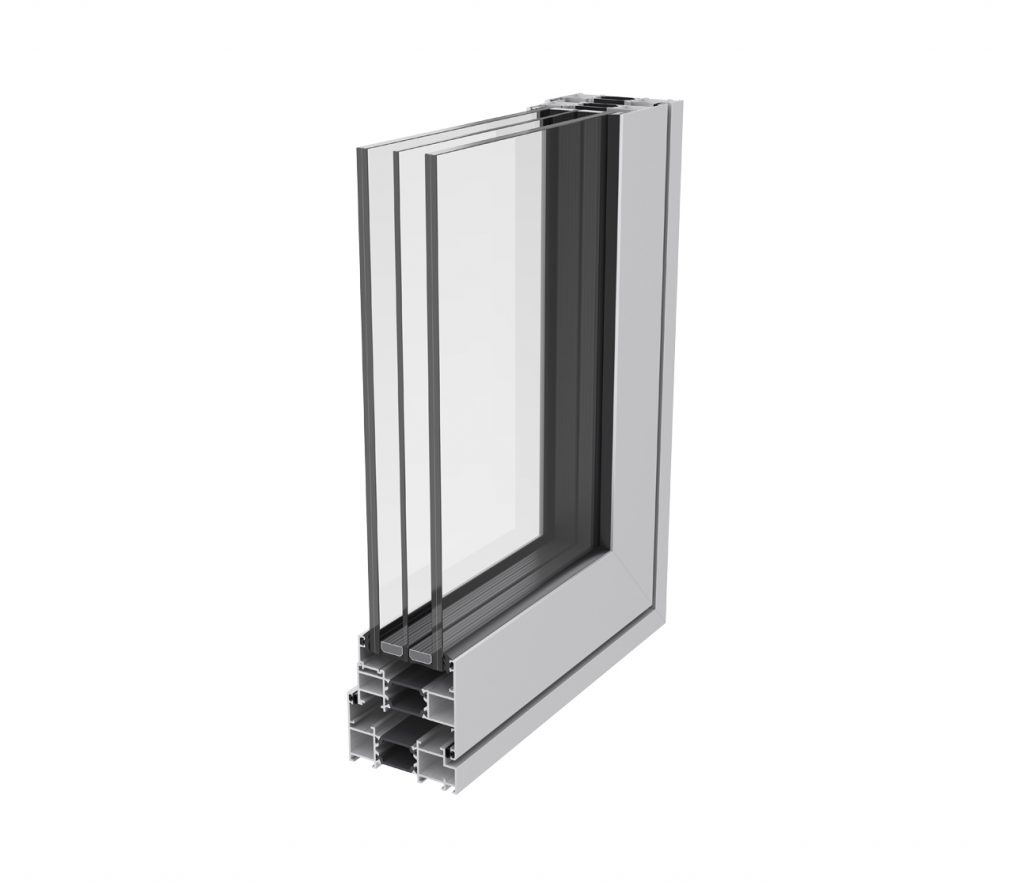

The KC75 aluminium casement window system from Exlabesa leads the field in terms of both performance and slimline appearance. It is compatible with both new-build and refurbishment projects and thanks to its innovative design using a mechanical corner cleat, can be quickly and easily fabricated to meet tight installation deadlines.
KC75 casement windows can be used in top hung and side hung applications. Polyamide thermal breaks are used to optimise thermal efficiency and outstanding weather resistance is achieved through the use of an innovative drainage system. The system can be used for punched hole, composite, and ribbon window applications and can be dry glazed either internally or externally using clip-in beads.
Features
- Slimline aluminium frames to maximise glass areas
- Available as escape window or easy clean
- Compatible with Exlabesa curtain wall sections
- Mechanical corner joints for easy fabrication
- Polyamide thermal breaks
- Top or side hung configurations
- Integral drainage system
- 75 mm polyamide sub frame section, for easy to install modular windows
- Egress option available
- Slimline internal glazing option
- Cills, add ons, curtain walling inser & coupler sections available
- Flush sash option available
Technical information
- 28mm double glazing as standard
- Maximum glazing size: 56m
- 75mm polyamide sub-frame section
- U-values as low as 1,2W/m²k
- Maximum vent size (top hung): 1500mm x 1500mm
- Air permeability: Class 3
- Water tightness: Class 9A
- Wind load: Class C5
- Weather tested to BS 6375-12009 & BS6375-2
- Security tested to PAS24: 2012 security accreditation
