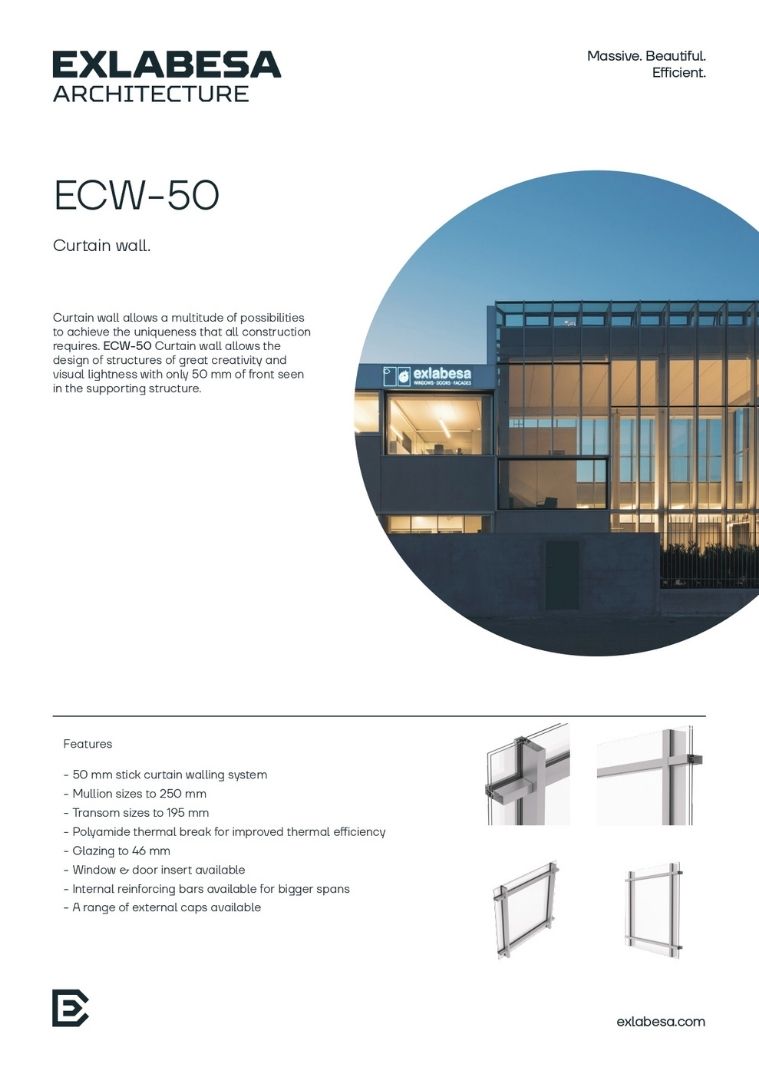

The ECW-50 aluminium curtain wall system provides a versatile façade solution for an endless variety of project designs. The 50mm stick curtain wall allows for large expanses of glass to be incorporated into the design to maximise natural light entry into the building interior.

The ECW-50 curtain wall system can accommodate a maximum glazing size of 46mm. It can feature a selection of window and door inserts and each section incorporates polyamide thermal breaks into the design for improved energy efficiency performance. It is compatible with all KWS window systems and KSF commercial door systems and features an innovative gasket design for ease of glazing.

  • Features
  • Technical information
  • Downloads
  • Features

    • Polyamide thermal breaks for enhanced energy efficiency
    • Available with internal reinforcing bars
    • Compatible with a selection of window and door inserts
    • Available with a range of external caps
    • CWCT certified

    Get in touch
    Exlabesa aluminium curtain wall cross section joiner.

    Technical information

    • 50mm stick curtain walling
    • Maximum mullion size: 250mm
    • Maximum transom size: 195mm
    • Maximum glazing: 46mm
    • Maximum weight: 350kg

    Get in touch

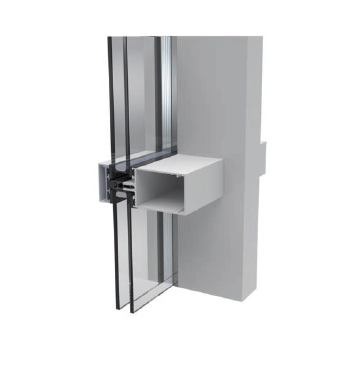

    ECW-50 aluminium curtain wall cross section.
